Key Features
Operating frequency 25 to 31 GHz
Dual polarization
Very low side lobe levels
High port isolations and cross-polarization rejections
Corrugated structure
2.92 mm coaxial connectors

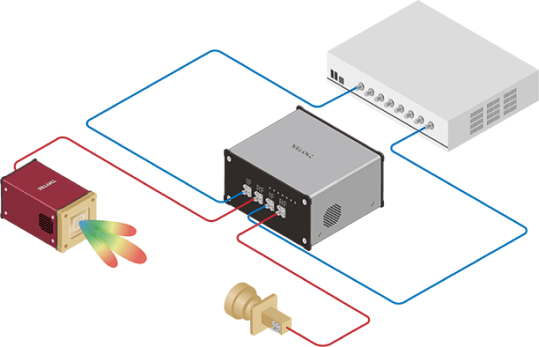

Horn Antenna in 5G / B5G
TMYTEK’s corrugated horn antenna frequency ranges from 25 to 31 GHz.
Dual-polarized
High port isolations
High cross-polarization rejections
These features are ideal for 5G FR2 mobile communications and test equipment applications with a very low sidelobe level.
Standard 2.92 mm coaxial connectors are used.
RF Specifications
Parameter | Condition | Units | Min | Typ | Max |
|---|---|---|---|---|---|
Frequency | --- | GHz | 25 | 28 | 31 |
Return Loss | --- | dB | --- | 15 | --- |
Isolation | --- | dB | --- | 35 | --- |
Peak Gain | --- | dB | --- | 17 | --- |
Cross Polarization | --- | dB | --- | 30 | --- |
3dB Beamwidth | --- | deg | --- | 18 | --- |
- | - | - | - | - | - |
Horn Antenna Introduction
Typical Performances
Radiation Pattern
27 GHz
Radiation Pattern
28 GHz
